Complete O Scale Train Layouts

O Scale train layouts are the best option for model railroad enthusiasts that are looking to build a model railroad with better realism and detail than other model train scales. It also has a wide range of model train track plans to choose from.

O Scale is 1:48, which is the ratio between the real world and the model. It provides a more suitable scale ratio that helps you add more features into the layout design as compared to HO scale and N scale.

What’s the difference between O Gauge and O Scale?

The difference between O gauge and O scale is the number of rails that are used to run trains on the track. O gauge refers to model trains that run on 3 rails and O scale refers to trains that run on 2 rail O scale track.

Another critical difference between O gauge vs. O scale is how the trains are electrically powered. O gauge 3 rail trains run on AC power while O scale 2 rail trains use DC (direct current).

What types of model trains run on O Gauge and O Scale?

The most popular model train brands for 3 rail trains include Atlas, Lionel, MTH. Given that O scale track uses 2 rail trains, majority of the regular manufactures can be used to attain trains.

O Scale Model Train Layouts and Track Plans

O scale model train layouts are excellent choice because of their user friendly, durability and cost-effectiveness. O scale layout construction is easier than building smaller scale layouts. The larger 1:48 size ratio allows for more spacing to poke around with your fingers.

The layouts are also more durable with solid nickel silver T-rails that provide sturdiness. It’s also flexible enough to not break easily, which will help save you money in the long run.

It’s also cost effective because you can easily find very good pricing on O scale and O gauge trains and accessories due to their popularity.

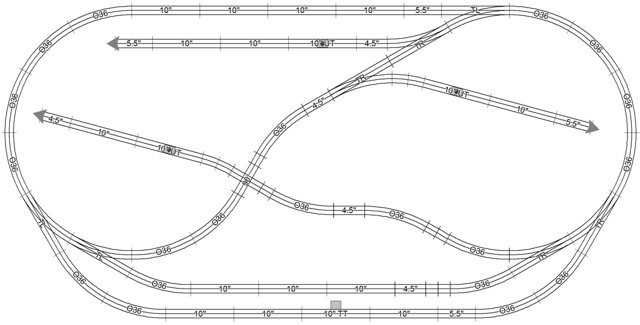

4×8 Train Layout O Scale Track Plan

simple oval shaped 4x8 o scale track plan

This 4×8 train layout in O scale is a simple one. It is relatively easy for beginners to try. The layout is small in size with a dimension of 244cm x 122cm. The total area covered for this layout is 2.97 square meters (3.55 square yards). The layout is shaped like an oval with the main station.

It is a closed route layout with a single line featuring branches and reverse loops. The minimum radius for the layout is 457mm and the turnout angle is 30 degrees. You can choose your ideal power supply for this track layout that is designed for freight and passenger trains.

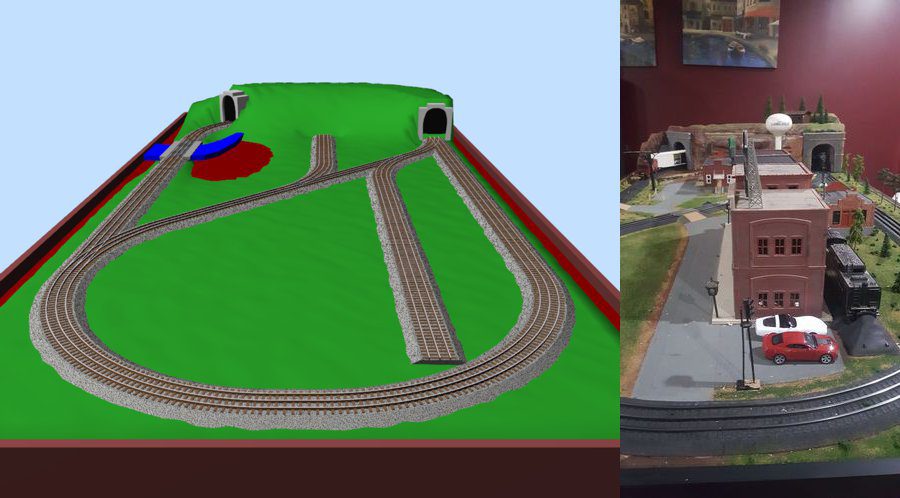

Small O Scale Train Layout

small compact o scale layout

If you are looking for a compact layout in O scale, this small O scale train layout is a good source of inspiration. It features an oval line with a dimension of 244cm x 122cm. The entire layout covers an area of 2.97 square meters (3.56 square yards).

Also, the vast amount of plain scenery gives you a perfect opportunity to unleash your creative potential and make it come to life.

This small o scale layout features two sidings and a crossover line. It is a great track for shunting or switching, especially with freight and passenger trains. The trackage is Lionel O Fastrack with a complex route consisting of branches and reverse loops. The turnout angle is 33.75 degrees.

Top Rated Track Plans for
Model Train Beginners

Including continuous running loop to loop, oval, figure eight and dog bone track plans

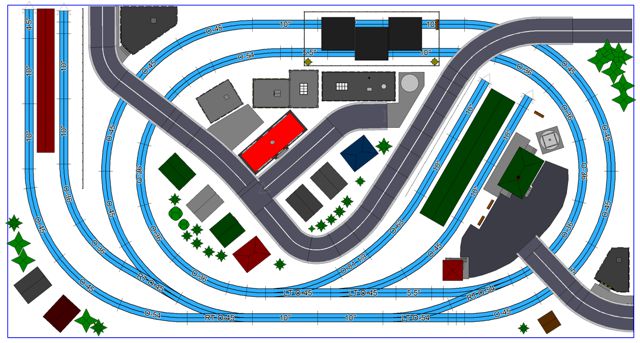

2 Rail O Scale Train Layout

2 rail o scale layout design

The 2 rail O scale layout uses Atlas rail tracks. It is a medium-sized layout with a dimension of 244cm x 129cm covering an area of 3.15 square meters (3.76 square yards). The layout era is from the modern/transition period during the spring/summer. The setting for this track is in a suburban or town area.

The O scale train layout model features a complex type route with a double line. Its minimum radius is 457mm with a turnout angle of 30 degrees. It is suitable for shunting or switching and allows up to three bi-directional trains to run simultaneously. There are a couple of transit terminals and a mileage marker.

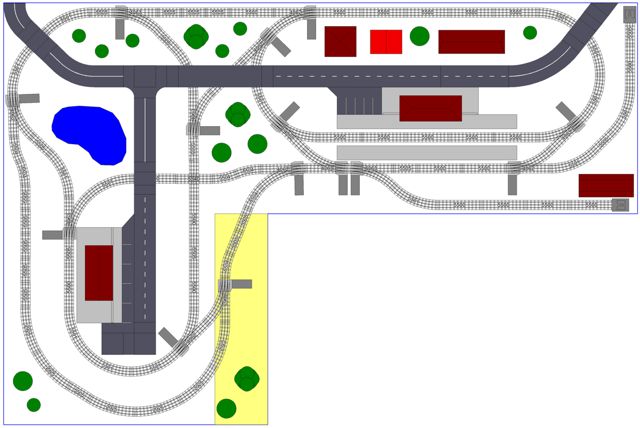

L-Shaped O Gauge Layout Track Plan

l shaped layout plan design for o scale

Usually, L-shaped O scale layouts are great for large spaces. The L-shaped layout pictured above uses a classic Lionel tubular track that can simultaneously enable two trains to run on the track at the same time.

The track layout provides enough plain scenery for you to add your own scenic details. It also has placeholder areas for shrubbery and bushes for scenery.

This O scale layout has a dimension of 366cm x 244cm. It covers an area of 8.93 square meters (10.68 square yards). It is a closed route type featuring a mixed line and reverse loops. The minimum radius is 360mm. This O scale train layout is ideal for passenger and freight trains.

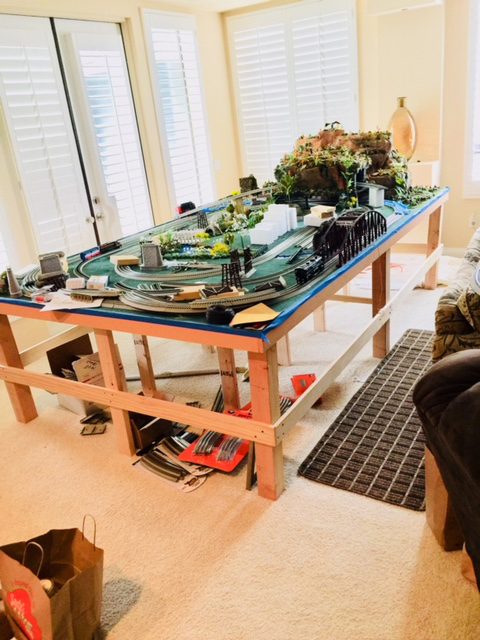

Large O Gauge Train Layout

large o gauge model train layout

This large 6×10 O gauge layout is a complex build. This was an impressive layout knowing that it is the creator’s first build. He intends to use the Bachmann train for this, although he also has Lionel and Marx trains that he plans on using on this model railroad layout.

The inspiration for the theme was the green landscape that the creator used to marvel at during his train rides from Pennsylvania to Ohio. There are lots of green landscapes, a river, and several grazing animals.

O Scale Shelf Layout

o scale shelf layout

The O scale shelf layout pictured above operated using brass rods that fit through the tie bar on either side of the track. The shelf layout uses two different locomotives with each caboose filled with different stock pile items. The layout is broke out into six different sections. It also contains a back scene along with some foliage within the gravel near the tracks.

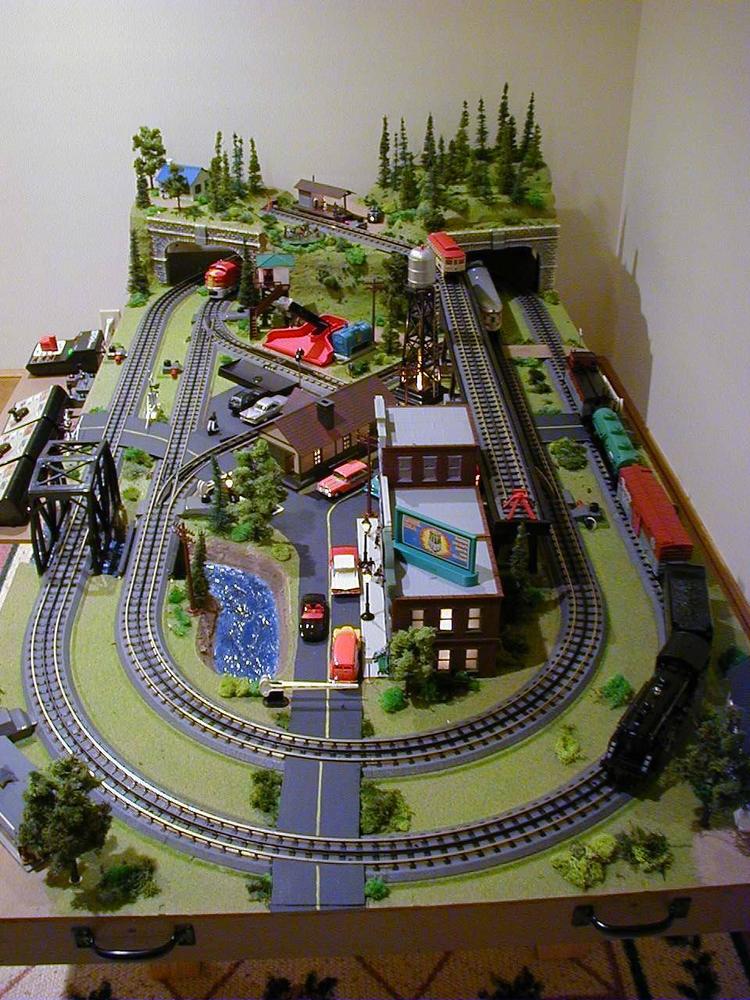

Industrial O Gauge Model Train Layout

o gauge

This O gauge model railroad layout blends industrial and rural scenery for operational fun and aesthetic appeal. Dual mainline tracks form a loop for continuous movement with a siding for variety. It features a small town with detailed buildings that create a community feel. A water tower, tunnel, and bridge add realism. Scenic elements include a forested hillside and a tranquil pond, enhancing the layout’s depth and capturing the imagination.

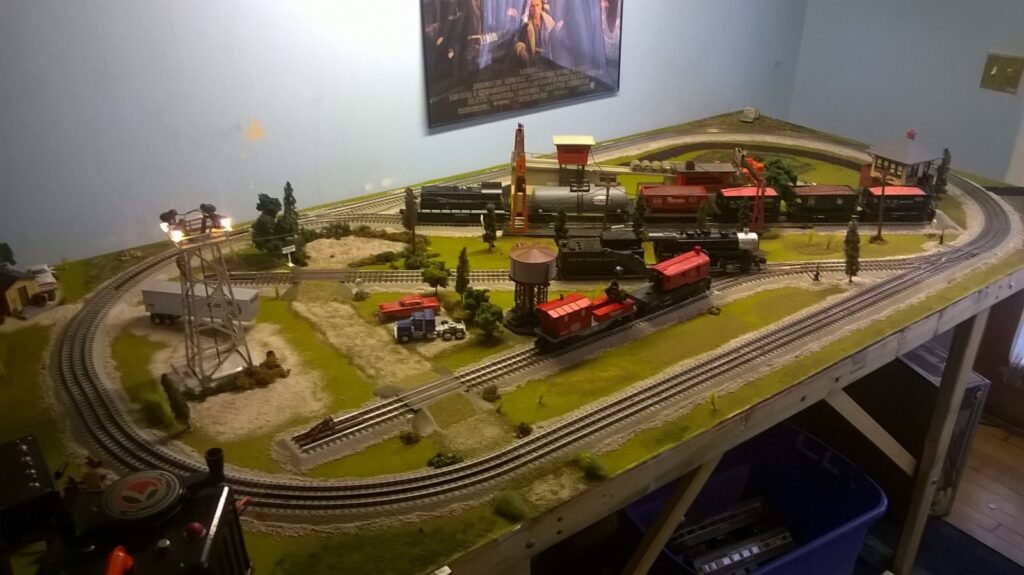

Oval Loop O Gauge 4×8 Layout

multiple loop 4x8 o gauge layout

This 4×8 O gauge layout features a dynamic track plan with multiple loops and sidings that allow for diverse operations. An outer loop ensures a continuous run while inner lines cater to switching and intricate train movements. The centerpiece is an industrial area with a fuel depot and cargo zone. It is complemented by a rural scene with greenery and a water tower, infusing the setup with vitality. Gentle elevation changes imply rolling terrain within the space’s confines and accessories like the overhead tower add realism.
